Photo & Drawing Based Development
Custom-Fit Insulation Protection
From equipment evidence and fit analysis to phase-coded samples and repeatable manufacturing.
Development Workflow
Engineering before quotation.
Submit equipment type, voltage class, dimensions, operating environment, target market and expected quantity.
01
Upload
Photos, PDF drawings, DWG or DXF files.
02
Review
Geometry, clearances, phase marking and material requirements.
03
Prototype
Fit confirmation, visible inspection and fastening detail.
04
Production
Tooling, manufacturing, inspection and delivery.
Material
Climate-Specific PC Review
Formulation can be evaluated for high UV exposure, heat or cold-region requirements.
Voltage
10kV & Custom 15kV
North American 15kV certification and testing requirements are agreed separately before claims are made.

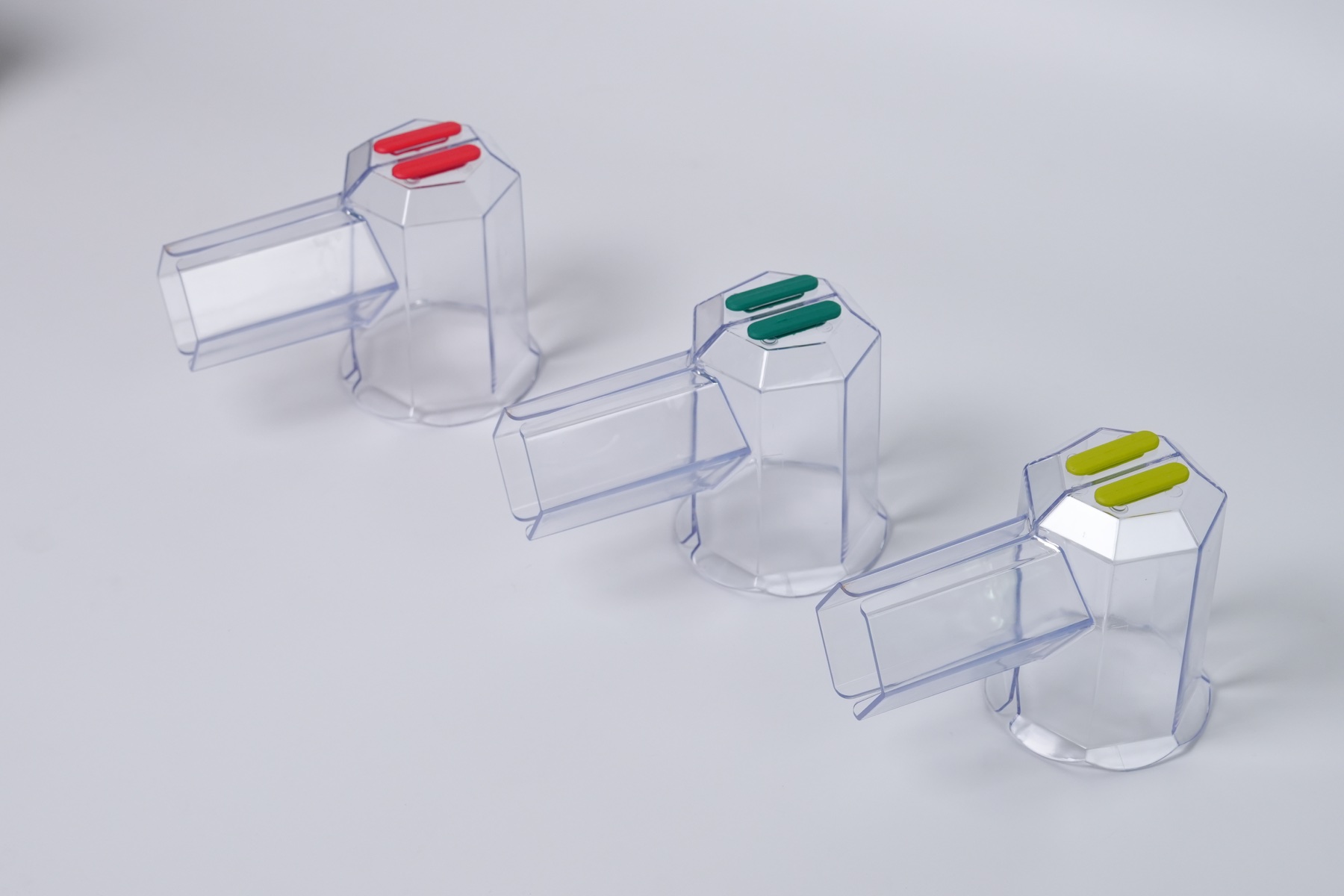

Identification
Three-Phase / Three-Phase Four-Wire
Red, yellow, green and blue components support visual installation control.
